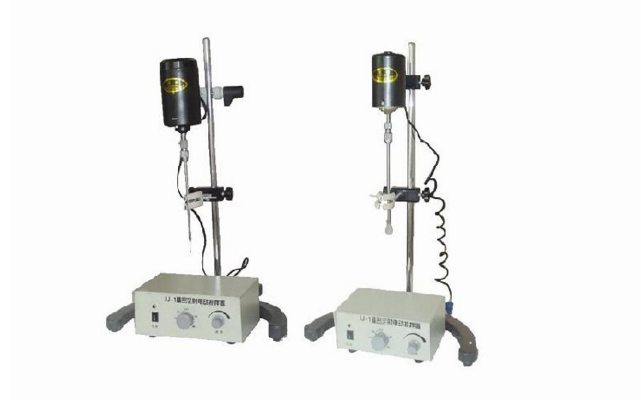

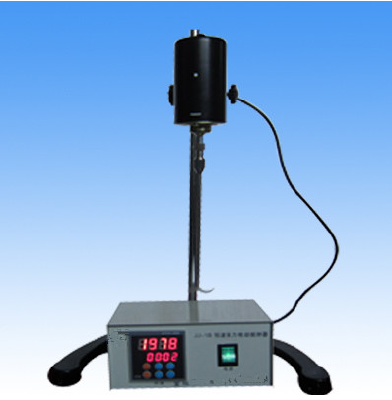

JJ-1B constant speed strong electric mixer

JJ-1B constant speed strong electric mixer

  • Min.Order Quantity: 1 Set
  • Supply Ability: 2000 Sets per Month
  • Port: china
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2013-02-28
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  jiangsu
  • Brand Name:  henglong
  • Model Number:  JJ-1B

JJ-1B, a constant speed powerful electric mixer Product Description: JJ-1B constant strong electric mixer mixer in one of the advantages of focus, which is especially suitable for mixing design institutes, enterprises and institutions such as laboratory for large capacity low to high viscosity liquid. JJ-1B constant speed strong electric mixer with smooth appearance, easy to use. The unique design of the cantilever, can prevent the liquid into the machine. While in continuous operation will produce heat to make the temperature rise, but the structure of a reasonable proportion of the cooling surface can be evenly and rapidly cooling,. Two meter long power lines can be applied to most applications. JJ-1B constant speed strong electric mixer must be installed on the support, not a hand-held operation.
Two, JJ-1B constant speed strong electric mixer technology parameters:
1, motor output power: 200W
2, rated power: 220 ~ 250V
3, working condition: long time continuous work
4, mixing shaft maximum torque: 1850gcm
5, speed range: 60 ~ 500rpm grade II in 240 ~ 2000rpm
6, the maximum mixing capacity (water): 30 liters
7, the environment temperature: 5 ~ 40 DEG C
8, the drill chuck clamping range: 0.5 ~ 10mm
9, suitable for medium viscosity: 0 ~ 10000mpas
Three, JJ-1B constant speed strength of the use of electric mixer:
1, the speed control knob factory preset at the highest speed (scale 10) to protect the drive system in the process of transportation is not damaged. Therefore, the setting of the knob should be checked before use to ensure that it is suitable for the stirred liquid. If you can't determine the speed, turn the knob to the minimum (scale 1).
2, without the use of mixer for a period of time, re use, early on will hear the friction noise, which is due to the friction wheel on the prestressed lining of the mixer function caused no damage, short running noise will disappear.
3, the drill chuck and a stirring shaft inserted into the clamping allows the stirring rod diameter of 10mm.
4, the machine through the friction wheel drive system to achieve stepless speed regulation, but the motor is always running at a fixed point of operation, the power output of the motor speed and torque at the point to achieve the optimal value and basically maintained as a constant. Power through the friction wheel and is provided with a pair of shaft coupling on the plastic transfer to the stirring shaft. Two gear system is configured on the same two axis to form a manual adjustment of the two speed. If you ignore the power transmission loss of power, the stirring shaft end is always equal to the motor output, a pair of spiral line coupling on the central axis of the wear wheel is maintained at a relatively low level. The coupling device automatically adjusts the required pressure on the friction wheel according to the load on the stirring shaft, the low load causes the low pressure, and the high load causes high and low pressure.
5, the experiment should pay attention to the position and size of the mixing head, especially the glass container. Must be turned off before the mixer, otherwise the reduction gear may be damaged. The machine is equipped with two speed, I gear for the low speed, the second gear for high speed. The preset position is the second gear, the second gear for I file, the counter clockwise (from the top down) to turn the plastic bearing sleeve to the stop bit. Pull down 5.5mm and then turn it clockwise until you hear the sound of the ball bearing sleeve reset. I II gear change gear, counterclockwise rotation of the bearing sleeve to stop, to push 5.5mm and then clockwise until you hear a sound ball reset.
Four, JJ-1B constant speed strong electric mixer cleaning and maintenance:
1, the machine will only be in the long-term natural wear and aging after the failure may be.
2, clean, only water and containing surfactant; no oily or fatty substances to come in contact with the friction wheel and the conical wheel surface, because it can greatly reduce the friction coefficient between the two, thus weakening the power transmission capacity

  • Place of Origin:  jiangsu
  • Brand Name:  henglong
  • Model Number:  JJ-1B
