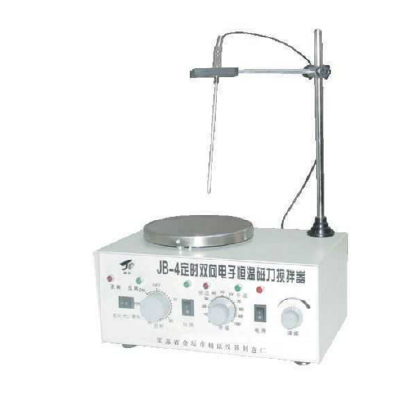

Brief introduction of JB-4/5 timing bidirectional digital display constant temperature magnetic mixer:
A, JB-4/5 type timing two-way digital thermostat magnetic stirrer, widely used for various institutions, scientific research, environmental protection, health and epidemic prevention, petroleum, metallurgy, chemical, medical and other units, is an essential tool for laboratory personnel ideal.
Two, timing bidirectional digital display constant temperature magnetic mixer features:
This machine adopts the permanent magnet DC motor load can run continuously for more than 10 thousand hours, the instrument performance is good, no noise, no vibration, automatic reversing and add a timing device, good stirring effect, stepless speed regulation, beautiful shape. For the laboratory staff, provide the ideal tool, the machine is made of cold rolled plate butt welding molding, the surface by high temperature spray to enhance the corrosion resistance.
Three, timing bidirectional digital display constant temperature magnetic mixer performance:
1, power: 220V 50HZ 10V
2, motor power: 25W
3, positive and reverse working hours each for 60 seconds
4, stepless speed regulation: starting ~ 2600 rpm
5, timing: 0~120 points
6, heating power: 400W digital temperature control: room temperature ~100
Four, timing bidirectional digital constant temperature magnetic mixer using method:
When using this instrument, firstly the required stirring in stirrer beaker table is added to the solution center, stir and stainless steel temperature probe placed in a beaker, and then plug the instrument; the first turn on the timer, select your desired time or to the open position, then open the power switch, indicator light starts to work. The need for bidirectional mixing, as long as the open two-way switch; the need for constant temperature mixing: just choose the temperature can be in the intelligent temperature control instrument (note the use of the specific operation; visible temperature controller) the speed of slow to fast (not allow quick starting, so as to avoid stirring, beating), does not work when the power should be cut off. In order to ensure the safety, please use the ground, equipment should be kept clean and dry, no solution into the machine, to avoid mechanical damage.
Five, timing bidirectional digital constant temperature magnetic mixer note:
Mixing found son beat or not stirring, please cut off the power to check whether the beaker, whether the location is, please measure at the same time, the current voltage is between 220V 10V, otherwise there will be more.
8 hours of continuous work speed operation, high-speed operation can work continuously for 4 hours. The machine equipped with a pillar, PTFE stirring a, a power line (plug). In order to ensure the credibility of products, where to buy our products from the factory date from the date of the unit itself due to the quality of the problem caused by the failure, are repaired or replaced by my factory.
